Two Door Coupe Body Style with 2+2 Seating
Extruded Bonded Aluminium Body Structure with Composite Panels
LED High & Low beam headlamps with Auto High Beam (AHB), integrated direction indicator, daytime running lights, position lamp & lock/ unlock graphic theatre
6-Vane metal grille
Swan Wing opening , infinite stop, frameless doors
LED light blade tail lamps
Deployable spoiler with Aston Martin Aeroblade ™ system

All-alloy quad overhead cam, 4.0 litre twin-turbo V8
Dual Twin Scroll Turbochargers (one per bank)
Compression Ratio 8.6
Direct Injection -Sequential electronic fuel injection
4 driver selectable powertrain calibrations (GT, Sport, Sport +, Wet)
Four catalytic converters with oxygen sensors
Wet sump pressurised system
Engine stop/start

All-alloy quad overhead cam, 4.0 litre twin-turbo V8
Dual Twin Scroll Turbochargers (one per bank)
Compression Ratio 8.6
Direct Injection -Sequential electronic fuel injection
4 driver selectable powertrain calibrations (GT, Sport, Sport +, Wet)
Four catalytic converters with oxygen sensors
Wet sump pressurised system
Engine stop/start

Maximum Power: 680PS at 6000rpm
Maximum Torque: 800Nm @ 2750-6000rpm
Acceleration: 0-62 (0-100km/h) in 3.6 seconds
Maximum speed: 202mph (325km/h)

Rear mid-mounted ZF eight-speed automatic gearbox with electronic shift-by-wire control system
Alloy torque tube with carbon fibre propeller shaft
Electronic differential (E-Diff)
Final drive ratio 3.083:1

Variable Electrical Power Assistance, rack & pinion steering system (EPAS)
Non-Isolated steering column
Speed-proportional steering with 13:09:01 ratio
2.375 turns lock-to-lock

Front independent double wishbone design coil springs and anti-roll bar
Rear multi-link suspension, with coil springs and anti-roll bar
Adaptive Damping System (ADS)
Intelligent DTX Dampers utilising Skyhook Technology

Wheels
21" Forged Alloy Wheels
Tyres
Front: 275/35/ZR21
Rear: 325/30/ZR21
Summer Tyre Model: Michelin PS5s
Bespoke summer tyre developed specifically for Aston Martin
Michelin Acoustic Tyre Technology
Winter Tyre Model: Michelin Pilot Alpin 5
Bespoke winter tyre developed specifically for Aston Martin
*Wheels depicted in the images are for illustration purposes only, see https://configurator.astonmartin.com/GB/configuration/AM572 for available wheel options.

Front ventilated two-piece steel brake discs Ø400 X 36mm with six-piston calipers
Rear steel brake discs Ø360 x 32mm with four-piston calipers
Dynamic Stability Control (DSC) & Traction Control (TC)
Electronic Brakeforce Distribution (EBD) & Hydraulic Brake Assist (HBA)
Emergency Brake Assist (EBA) & Anti-Lock Braking (ABS)
Engine Drag control (EDC)
Positive Torque Control (PTC) & Dynamic Torque Vectoring (DTV)

Length: 4725 mm
Width: 2135 mm (including door mirrors)
Rear Width: 1980 (excluding door mirrors)
Front Width: 1942 (excluding door mirrors)
Height : 1295 mm
Wheelbase: 2805 mm
Fuel tank capacity: 78 litres
WEIGHTS
Weight (Kerb - EU Including light weight options): 1788Kg
Weight Distribution: 48:52 (Front / Rear)
Interior Dimensions
Effective Headroom (mm): 980
Effective Shoulder-room (mm): 1380
Effective Leg-room (mm): 1145
Boot Volume (l): 262

Standard Specification - Exterior
Exterior Paint - Solid
"Exterior Lower Body pack - Body Coloured
- Body Coloured Splitter and Sill
- Gloss Black Rear Diffuser"
Grille - Satin Chrome Vaned Grille
Badging - White Enamel with Green Infill
Bonnet Meshes - Black
LED Daytime Running Lights (DRL)
Laminated windscreen with clear noise-insulation layer
"Exterior Body pack - Body Coloured
- Bright Side Strake with Aston Martin word mark
- Bright Tailpipe Finishers
- Body Coloured Mirror Caps
- Body Coloured Cantrails"
Door intergrated puddle lighting
Roof Panel - Body Coloured
Wheels - 21" Five Spoke Forged - Satin Silver
Brake Calipers - Dark Grey Anodised
LED Tail Lights - Red
LED rear fog and reverse lights
Heated rear window
Standard Specification - Interior
Interior Environment - Create
Trim Split - Monotone
Comfort Seat with Heating and 12-way adjustment
Glovebox
Cabin courtesy light
Ambient lighting
Door Stowage pockets
Door sill plaques - anodised with 'Aston Martin' wings
Sun visors with illuminated vanity mirrors
Electric steering column tilt & reach adjustment
Electric windows
Front centre armrest
Keyless start/stop button
Twin cupholders
Black Alcantara headlining
Black 600GSM Carpet
Gloss Black Fascia and Door trim inlays
Gloss Black Centre Console trim inlays
Satin Chrome Jewellery
Technology & Audio
10.25” TFT Touch Screen Central Display
10.25” TFT driver information display
Apple CarPlay™
390-watt 11 Speaker Aston Martin Audio System
AM/FM/HD/DAB radio
Wireless Phone Charging
Bluetooth mobile phone connectivity with audio streaming
Natural Voice control
Satellite navigation system
SiriusXM Satellite radio (US/CA only)
SOS Emergency Call (EU / Rus only)
USB ports (x2)
12v charging socket
Advanced Driver Assistance Systems (ADAS)
Adaptive Cruise Control Stop & Go Including Speed Limit Adaptation (ACC)
Traffic Sign Recognition (TSR)
Lane Keep Assist (LKA)
Lane Departure Warning (LDW)
Lane Change Assist (LCA)
Front Cross Traffic Assist (FCTA)
Rear Cross Traffic Assist (RCTA)
Door Open Assist (DOW)
Hands Off Detection (HOD)
Auto High Beam Control (AHB)
Driver Drowsiness Detection (DDD)
360 and 3D Surround View System (3D SVS)

Optional Features - Interior
Interior Environments - Accelerate/Inspire/Inspire Sport
Seating - Sports Plus Seat/ Carbon Fibre Performance Seat
Headlining - Coloured Alcantara / Leather - Matched to environment
Carpet - Coloured 720GSM
Stitch - Contrast / Mirrored
Brogue - Contrast
Fascia and Door Trim Inlays - Leather Wrapped / Light Brushed Aluminium/ Dark Brushed Aluminium / Light Ash Open Pore Wood / Dark Walnut Open Pore Wood / Satin 2x2 Twill Carbon Fibre
Centre Console Trim Inlays - Light Brushed Aluminium/ Dark Brushed Aluminium / Light Ash Open Pore Wood / Dark Walnut Open Pore Wood / Satin 2x2 Twill Carbon Fibre
Seatback - Matched to Door Trim Inlay
Jewellery - Dark Satin Chrome
Steering Wheel - Heated
Seatbelts - Core Palette
Audio - Bowers & Wilkins Audio
Optional Features - Exterior
Optional Paint Palettes - Solid/Metallic/Signature Metallic/Racing Line/Satin/Special/Heritage
Exterior Lower Body Package - Gloss Black / Gloss 2x2 Twill Carbon Fibre
Exterior Upper Body Package - Gloss Black / Gloss 2x2 Twill Carbon Fibre
Grille - Gloss Black Vaned Girlle
Roof Panel - Gloss Black / Gloss 2x2 Twill Carbon Fibre
21" Multi Spoke Wheel - Satin Platinum / Satin Black / Satin Black Diamond Turned
Brakes - Carbon Ceramic Brake System

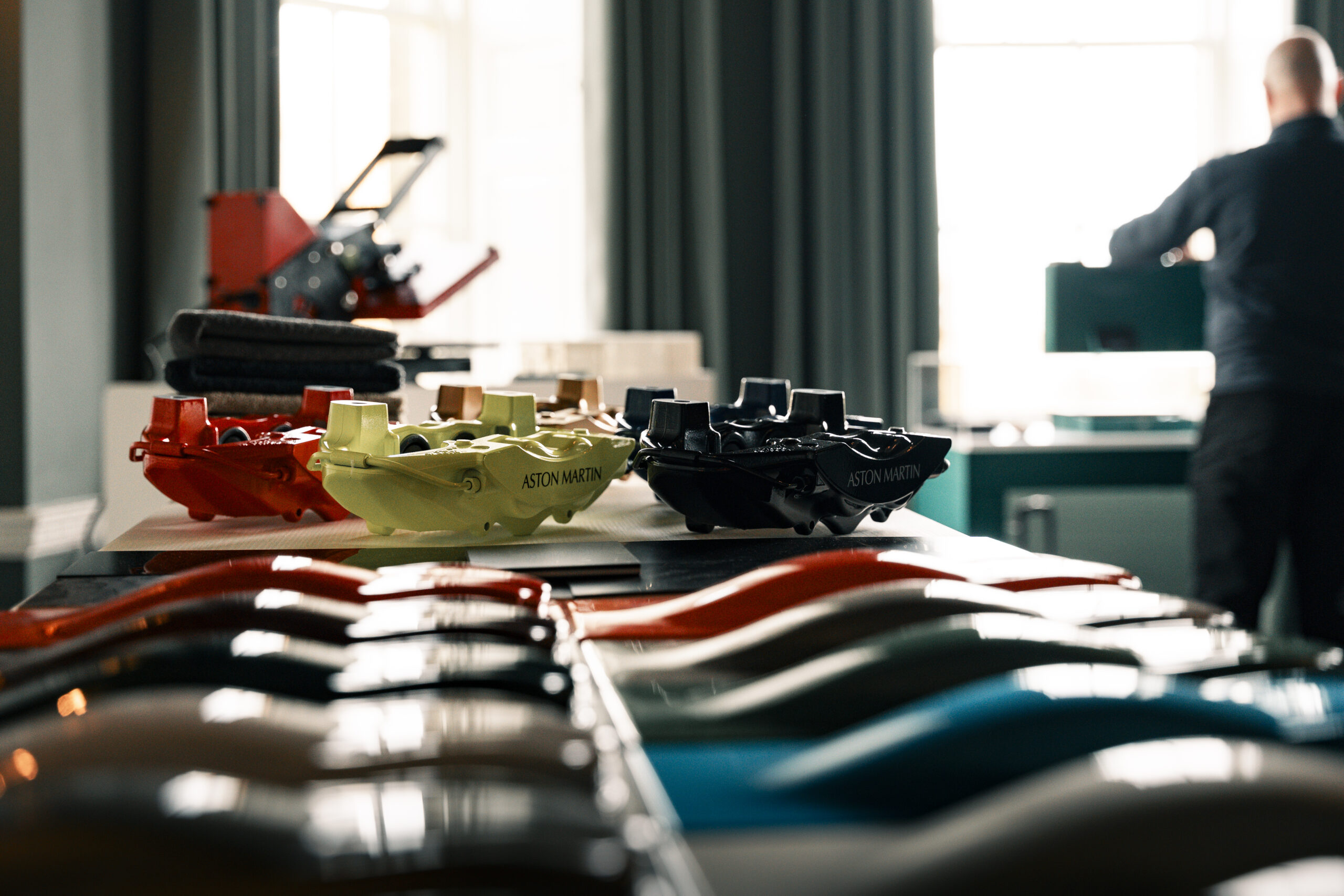

Brake Caliper Colours - Black/Yellow/Red/ Silver/Aston Martin Racing Green/Bronze
Tail Lights - Smoked
Aston Martin Black Wings and Script Badges

1. Figures shown are for comparability purposes; only compare with other cars tested to the same technical procedures. Figures may not reflect real life driving results, which will depend upon a number of factors including factory-fitted options, accessories fitted (post registration), variations in weather, driving styles and vehicle load. Further information about the test used to establish fuel consumption and CO2 figures can be found at www.astonmartin.com
