Five-door body style with 2+3 seating
Extruded and cast Aluminium, continuous hot bonded monocoque body shell
Aluminium and composite body panels
Panoramic glass sunroof
Acoustically laminated windscreen and front side windows
Bi-LED AHB (auto high beam assist) headlamps with day time running lights, position lamp, lock /unlock graphic theatre.
Sport style LED Daytime running lights with integrated direction indicators
Clamshell bonnet
6-Double vane chromed all metal grill with hand crafted, chrome plated brass and enamel Aston Martin badges front and rear
"Swan Wing" infinite stop frameless doors and powered tailgate
Soft close powered passenger door latches
Signature full width LED tail lights with active stop tail light, indicator functions and centre high mounted stop light

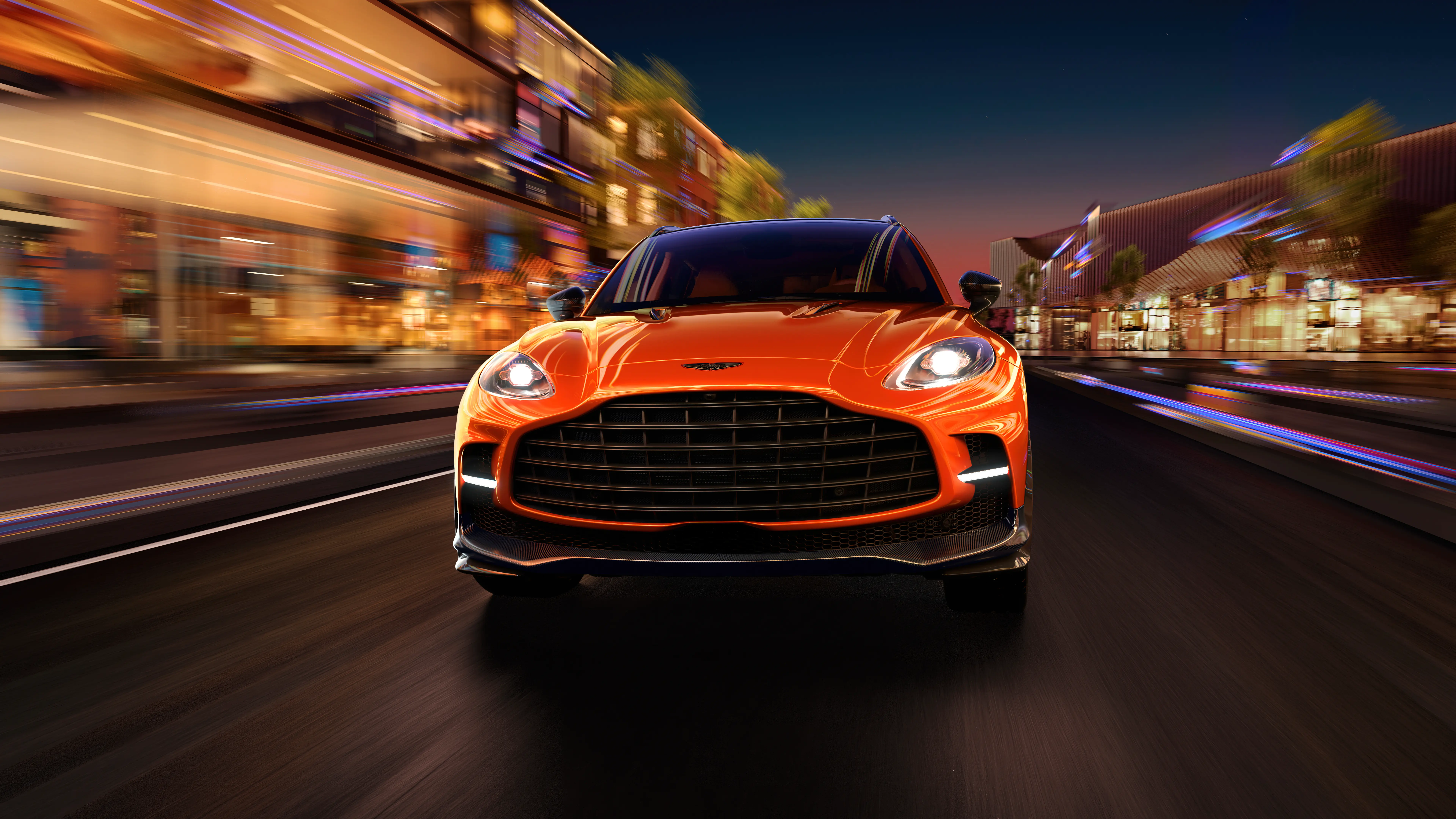

Sport design front bumper with double vane grille, wide body cooling intakes, high gloss black sport splitter and aero front wheel arch winglets
Sculpted twin level sport side sills in high gloss black
Winged multi-piece diffuser with sculpted side aero winglets
Vented rear wheel arches
Carbon fibre spoiler applique
Quad exhausts in matt black

All alloy quad overhead cam, 4.0 litre twin-turbo V8
Twin "hot-V" mounted turbo chargers
Front mid-mounted engine with double firewall / bulkhead to cabin
Compression ratio 8.6:1
Bore x Stroke: 83mm x 92mm / 3.27" x 3.62"
Capacity: 3,982 cm³ / 243 in⁵
Gasoline direct injection
Fully catalysed, straight stainless steel exhaust system with GPF filtration and active valve controlled rear twin outlet muffler
Dual acoustic engine start (quiet start or sport start)
Electronically controlled exhaust, with independent exhaust control switch
Variable 32 valve camshaft timing
90 degree V8 closed deck aluminium alloy block with Zirconium alloy 32v heads
Head mounted, twin charge air water coolers
Lightweight aluminium forged pistons and connecting rods housed within Nanoslide® arc-sprayed, spectacle-honed bores
Closed coupled catalytic converters, underfloor mounted gasoline particulate filtration, cylinder deactivation, ECO stop/start and automatic alternator regenerative charge cycle management

All alloy quad overhead cam, 4.0 litre twin-turbo V8
Twin "hot-V" mounted turbo chargers
Front mid-mounted engine with double firewall / bulkhead to cabin
Compression ratio 8.6:1
Bore x Stroke: 83mm x 92mm / 3.27" x 3.62"
Capacity: 3,982 cm³ / 243 in⁵
Gasoline direct injection
Fully catalysed, straight stainless steel exhaust system with GPF filtration and active valve controlled rear twin outlet muffler
Dual acoustic engine start (quiet start or sport start)
Electronically controlled exhaust, with independent exhaust control switch
Variable 32 valve camshaft timing
90 degree V8 closed deck aluminium alloy block with Zirconium alloy 32v heads
Head mounted, twin charge air water coolers
Lightweight aluminium forged pistons and connecting rods housed within Nanoslide® arc-sprayed, spectacle-honed bores
Closed coupled catalytic converters, underfloor mounted gasoline particulate filtration, cylinder deactivation, ECO stop/start and automatic alternator regenerative charge cycle management

Max power: 707PS / 697BHP / 520KW @ 6,000rpm
Max torque: 900Nm / 663lb-ft @2,750 - 4,500rpm
0-60 mph: 3.1 secs
0-100 km/h: 3.3 secs
0-100 mph: 7.4 secs
50-75 mph / 80-120 km/h: 1.9 secs
Top speed: 193 mph / 310 km/h

Electronically controlled active all-wheel drive system
9-speed lightweight cast magnesium bodied automatic gearbox
Multi-plate wet clutch with oil cooling
"Close coupled" engine mounted gearbox
Electronic shift-by-wire control system
Electronic active centre transfer case with front axle 'pre-load' capability (drive mode dependent)
"Thru-sump" mounted front differential with equal length front drive shafts
Lightweight, one-piece carbon fibre rear propeller shaft
Electronic rear limited-slip differential
Five adaptive drive modes (4 on-road, 1 off-road)

Electric power-assisted, rack & pinion steering system (EPAS)
Speed-proportional steering with 14.4:1 ratio
2.6 turns lock-to-lock

Cast aluminium suspension and subframe technology
Front: Independent forged / hollow cast double wishbone split link with hydrobushing and integrated hub bearings
Rear: Extruded and hollow form cast multi-link
Subframes: Hollow cast aluminium subframes (two-piece front, single-piece rear) with integrated driveline cooling aero ducting
Adaptive triple chamber air suspension with quad spring rates
Variable ride height (raised by up to 45mm or lowered by 50mm) with auto speed lowering and access mode
Variable rate 'Damptronic® Sky' adaptive damping with independent adjustment capability for compression and rebound
1,400Nm 48v electronic active anti-roll control system (48-volt eARC) with active 48v regenerative charging and drive mode controlled off-road "zero load" cross linking.

Wheels
Front: 22" x 10J ET56 Flow forged aluminium
Rear: 22" x 11.5J ET56 Flow forged aluminium
Tyres
Front: 285/40 YR22
Rear: 325/35 YR22
Summer - Pirelli P-Zero
Tyre pressure monitoring system (TPMS)

Brake size: Ø420mmx40mm discs (Front) / Ø390mmx32mm discs (Rear)
Brake Discs: Carbon ceramic vented and grooved 2-piece semi floating
Calipers: Aluminium front 6-piston monoblock caliper (Front) / Aluminium and cast iron sliding single piston caliper with integrated park brake (Rear)
Intelligent wet brake control with brake pad wear indication
Anti-lock Braking System (ABS)
Dynamic Torque Vectoring (DTV)
Electric Parking Brake (EPB)
Electronic Brakeforce Distribution (EBD)
Electronic Stability Control (ESC)
Emergency Brake Assist (EBA)
Launch control
Hill Start Assist (HSA)
Roll-over Stability Control (RSC)
Traction Control (TC)
Trailer Stability Control (TSC)

Length: 5,039mm / 198.4"
Width (Body): 1,998mm / 78.7"
Width (Mirrors folded): 2,050mm / 80.7"
Width (Mirrors out): 2,220mm / 87.4"
Height: 1,680mm / 66.1"
Wheelbase: 3,060mm / 120.5"
Front overhang: 915mm / 36"
Rear overhang: 1,064mm / 41.9"
Track (front): 1,698mm / 66.9"
Track (rear): 1,664mm / 65.5"
Turning circle (Kerb-to-kerb): 12.4m / 40.7'
Approach angle (GT mode / Max offroad): 22.20 / 25.70
Breakover angle (GT mode / Max offroad): 15.10 / 18.80
Departure angle (GT mode / Max offroad): 24.30 / 27.10
Ground clearance (GT mode / Max offroad): 190mm (7.5") / 235mm (9.3")
Wading depth (max): 500mm / 19.7"
Kerb weight DIN: 2,245Kg / 4,940lb
Gross vehicle weight: 3,020Kg / 6,644lb
Weight distribution: Front 52 : Rear 48
Towing capacity (braked / unbraked): 2,700Kg / 750Kg (5,940lb / 1,650lb)
Roof load: 75Kg (including all roof loading equipment)

Legroom - Front / Rear: 1,060mm (41.7") / 1,040mm (40.9")
Headroom - Front / Rear: 1,030mm (40.9") / 1,016mm (40")
Shoulder room - Front / Rear: 1,483mm (58.4") / 1,384mm (54.5")
Loadspace volume - Total / under load shelf: 638ltrs (22.5ft3) / 491ltrs (17.3ft3)
Loadpsace length - Seats up / Seats down: 1,021 (40.2") / 1,780mm (70.1")
Loadspace width: 1,161mm (45.7")
Loadspace height - to roof / under load shelf: 693mm (27.3") / 482mm (19")
Lift in height: 810mm (31.9")

Safety
Airbags - Driver, Front passenger and knee
Airbags - Front thorax and side curtains
Airbags - Rear thorax airbags (not UK / EU / South Africa)
Seatbelts - Pretensioners
Seatbelts - Seatbelt occupancy detection and indication
Seats - ISOFIX mounts rear outer seats, i-Size certified rear environment
ADAS
Adaptive cruise control (ACC)
Auto Emergency Braking (AEB)
Auto park assist
Auto vehicle hold
Blind spot warning (BSW) inc. Lane change warning (LCW)
Door exit warning (DEW)
Forward collision warning (FCW)
Lane departure warning (LDW)
Lane keep assist (LKA)
Rear cross traffic detection (RCT)
Speed limiter
Traffic sign recognition (TSR)
Security
Keyless entry with remote central locking
Vehicle alarm and immobiliser

Solid exterior paint colour
Satin chrome double vane grill
Dark satin chrome upper pack
Gloss black sport lower pack
Aston Martin wings & rear wordmark - Enamel and polished chrome
Red tail lights
22" Sport wheel - Gloss black / Diamond turned
Pirelli P-Zero summer tyres²
Tyre repair kit³
Paint protection film
Gloss black painted brake calipers with Aston Martin script
Power tailgate
Accelerate environment - monotone
Sport steering wheel, non-heated, black
Sport seats, 16-way
Heated seats, front and rear
Leather / Alcantara® - black
Match-to stitching
Micro- perforation seat detailing
Embroidered Aston Martin wing headrest
Black Alcantara® headlining
Black seatbelts
Black 720gsm cabin carpets and matched loadspace with matched carpet mats
Dark satin chrome jewellery
Extended piano black veneers to centre console and saddle door veneers
Clear, heat insulating glazing
Aston Martin Premium Audio System (800 watts, 14 speakers)
Rotary infotainment system interface
Touchpad infotainment controller
Aston Martin Satin Designer key
Wireless charger

Interior
ACCELERATE environment - Sport Duotone
INSPIRE - Comfort environment - Monotone
INSPIRE - Comfort environment - Duotone⁴
INSPIRE - Sport environment - Monotone
INSPIRE - Sport environment - Duotone
Colour Leather Palette
Q Semi Aniline Leather Palette⁵
Brogue - Contrast⁸
Heated and ventilated - front and rear⁶
Contrast stitch
Mirrored stitch
Coloured Alcantara® headlining⁶
Coloured Carpets and matched loadspace / floor mats
Alternative seatbelt colours – Red, Mocha, Ivory, Tan and Graphite
Alternative trim inlays - Gloss 2x2 twill carbon fibre, Q Gloss bronze mesh
Alternative jewellery - Bright satin chrome, Gloss 2x2 twill carbon fibre with dark satin chrome
Sports heated steering wheel⁶
Alcantara non-heated Sports steering wheel
Heavy pile floor mats⁵
Exterior
Optional Paint Palettes - Metallic, Premium Metallic, Racing Line, Q Satin, Q Special, Q Heritage, Q Out of Range
Power tailgate with gesture control⁷
Gloss 2x2 twill carbon fibre upper pack
Gloss 2x2 twill carbon fibre lower pack⁷
Gloss black chrome grille
Aston Martin wings & rear wordmark - dark chrome
Wheels - 22" Sport - Satin Black
Wheels - 22" Sport - Silver
Wheels - 22" Ribbon - Gloss Graphite Diamond Turned
Wheels - 22" Ribbon - Satin Black Diamond Turned
Wheels - 22" Ribbon - Satin Black and Bronze Diamond Turned
Wheels - 23" Forged - Satin Black / Diamond Turned
Wheels - 23" Forged - Satin Black / Halo Diamond Turned
Wheels - 23" Forged - Textured black
Wheels - Space saver spare wheel³
Alternative Painted brake calipers - Red, Grey, Yellow, Bronze, Vivid orange
Privacy glass³
Acoustic privacy glass³
Smoked tail lights
Tow bar - Electric deploying³
Tow bar - 2" reciever³
Functional
Homelink® Wireless Control (GDO)
Remote Park Heat ³
Tracking system³
Umbrella and Holder

1. Figures shown are for comparability purposes; only compare with other cars tested to the same technical procedures. Figures may not reflect real life driving results, which will depend upon a number of factors including factory-fitted options, accessories fitted (post registration), variations in weather, driving styles and vehicle load. Further information about the test used to establish fuel consumption and CO2 figures can be found at www.astonmartin.com
2. Fitment varies regionally
3. Available in mid duotone or light duotone
4. Inspire environment only
5. Accelerate environments only
6. Power tailgate with gesture control and Carbon fibre lower pack are not available together
7. Inspire Comfort only
